Preferences window contains three tabs:
Apply button at the bottom will apply the changes without closing the
Preferences window. The
OK button applies the changes and closes the window. The
Cancel button closes the window without applying the changes.
Settings either have a
Global scope or a
Global settings apply to all open files from the moment they're set. These include such settings as
Shade Every Other Row\Column.
Table scope may vary from file to file. The changes in the
Preferences window only apply to files that are opened after applying the changes. If you want to change a
Table setting in an already opened file, use the File Metadata Pane or the command (e.g.
Toggle Auto-Fit Row Height or
Set Number of Header Rows).
See the Settings Reference to learn more about individual settings.
Commands can have more than one shortcut. Separate them with the pipe (|) character (e.g.
ctrl+p|ctrl+t for the
Go to File command). Shortcuts can also be sequences of keystrokes. Separate the keystrokes with a command (e.g.
ctrl+k,ctrl+u for the
Upper Case command).
File Extension Options
You can set the parameters it uses to open files according to their file extension. Under the
Delimiter columns, you can either pick one of the options or type in a new one. Under the
Parsing Standard columns, you must pick one of the options.
Here are the default parameters:
- Delimiter: It tries to automatically detect the delimiter.
- Line Ending: The system default (i.e. CLRF for Windows, LF for Mac and Linux)
- Character Encoding: UTF-8
- Parsing Standard: RFC 4180
When applying changes to the
Preferences window, it edits and saves one or more of the preferences files. If you prefer, you can edit them directly by calling one of the following commands:
Edit Settings File
Edit Keyboard Shortcuts File
Edit File Extension Options File
Keyboard Shortcuts files, you must make your changes under the
User column, not the
Default column. In all files, you may delete rows above the header row (i.e. the instructions), but do not delete the header row or change the name of any command or setting.
In setting the character encoding, you may wish to use the
List Character Encodings command. It lists all of the available encodings and if you choose one, it copies it to the clipboard which you can then paste in the
You can also restore them to their default states using the Restore commands:
Restore Settings File
Restore Keyboard Shortcuts File
Restore File Extension Options File
The File Metadata bar provides the following information about the current file (* means you can change it in the File Metadata bar):
- File name *
- File location *
- File size (in bytes)
- File dimensions (rows x columns)
- Read-Only *
- Header rows and columns
- How many *
- Whether they're frozen *
- Whether they're highlighted *
- Auto-Fit rows and columns
- Whether it's enabled or not *
- Max size *
- First index label of rows and columns *
- Parameters the file was loaded with *
- Parameters the file will be saved with *
For more about file parameters, see File Parameters.
Showing or Hiding UI Features
File Metadata bar:
Show Row Labels
Show Column Labels
File Metadata bar:
Show Row Labels
Show Column Labels
Row and Column Sizes
The program can automatically set column widths and row heights based on the file's content with the following settings:
Auto-Fit Row Height (Disabled by default)
Auto-Fit Column Width (Enabled by default)
If a file has over 500 columns and
Auto-Fit Column Width is enabled or over 500 rows and
Auto-Fit Row Height is enabled, it will ask if you want to disable them. The reason is auto-fit does not perform well with large numbers of rows or columns.
When auto-fit is enabled, a single large cell may cause an entire row or column to take up an excessively large portion of the screen. The maximum size settings prevent this:
Maximum Row Height for Auto-Fit
Maximum Column Width for Auto-Fit
When a row or column contains only empty cells, its height or width is set to the default:
Default Row Height
Default Column Width
Manually set row heights and column widths
The following settings will manually set the row heights or column widths of all selected cells:
Set Selected Row Heights
Set Selected Column Widths
You can set a minimum size for the table even when it has no data using these settings:
Minimum Number of Table Rows (default is 50)
Minimum Number of Table Columns (default is 50)
You can also set the number of rows and columns beyond the last row/column of data that it shows:
Number of Buffer Rows (default is 2)
Number of Buffer Columns (default is 2)
None of the extra rows and columns will be saved in the file. If you go to the last row and hit enter, it adds new rows. If you use the
Go to Cell,
Move Cell Contents To ..., or
Duplicate Cell Contents To ... commands to go to a location beyond the current table size, it will do so.
Set Theme changes the theme. You can also set it in the Settings tab of the
Modern CSV currently has the following themes:
- Solarized Dark
- Solarized Light
Font and text size
Set Text Size

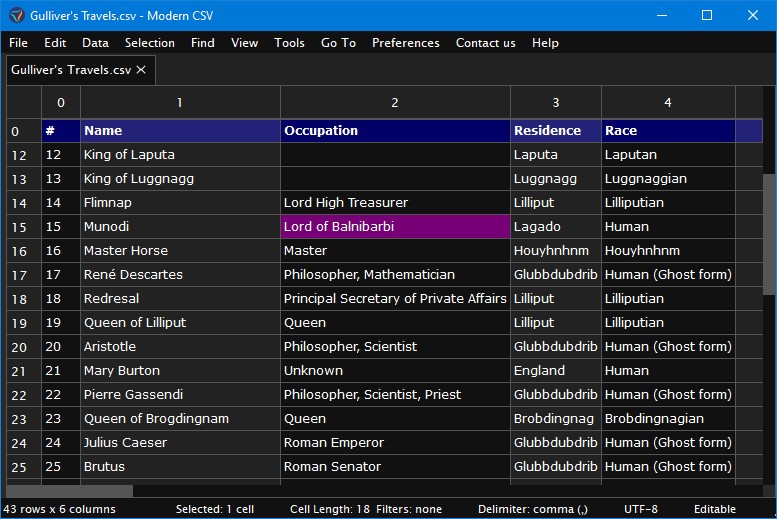

Shade every other row and column
Shade Every Other Row
Shade Every Other Column
Highlight the selected cell's row and column
Highlight Main Selected Cell's Row and Column
The highlighting will only appear when a single cell is selected.
First row/column index
Set First Row Index
Set First Column Index
Represent columns as letters
Toggle Represent Columns as Letters
